Banquet system for Vision 2011 combi ovens

Banquet system for Vision 2011 combi ovens

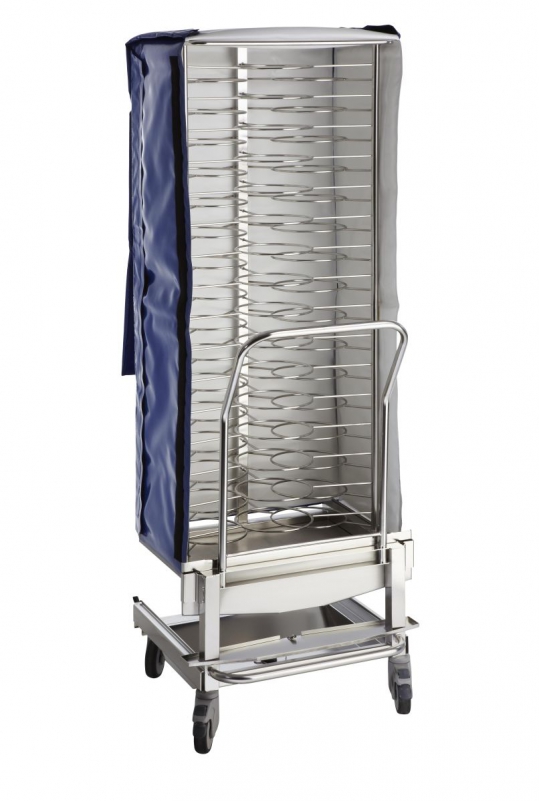

The banquet system for Vision 2011 combi steamers consists of a banquet trplley VO2011B and a thermal cover TO2011. The banquet trolley VO2011B is available in two capacities — for 59 plates (65 mm of space between circles) or 48 plates (80 mm of space between circles). The trolley is designed for plates 280 mm in diameter. All of these components for the 2011 banquet system must be ordered separately.

Request

TODO /3d/nejaky_soubor_b-623.html

Banquet system and thermocover

Banquet system 2011

NameTypeCircle spacing (mm)Diametr of plates (mm)
Banquet trolley for 2011-59 plates VO2011B-59 65 280
Banquet trolley for 2011-48 plates VO2011B-48 80 280




 Thermo covers 2011

NameType

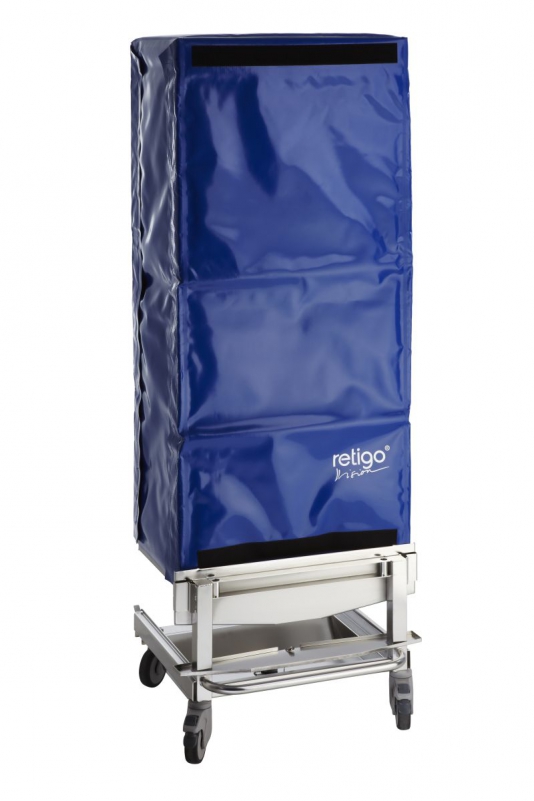

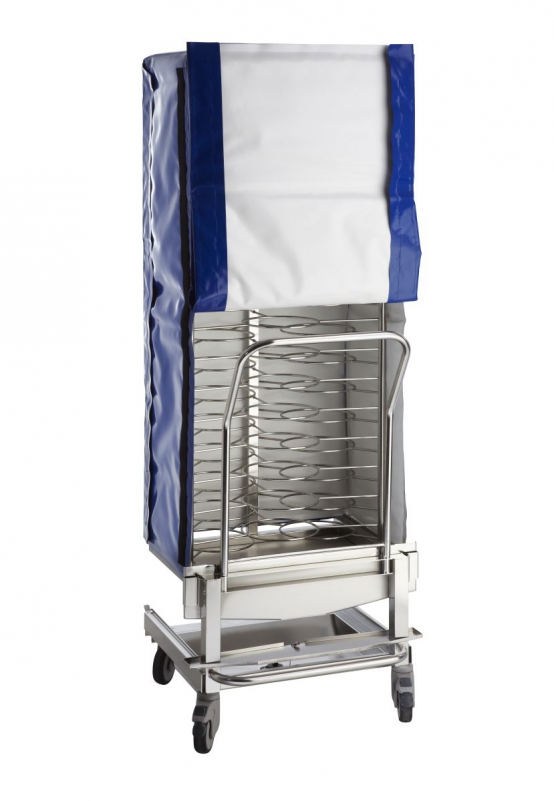

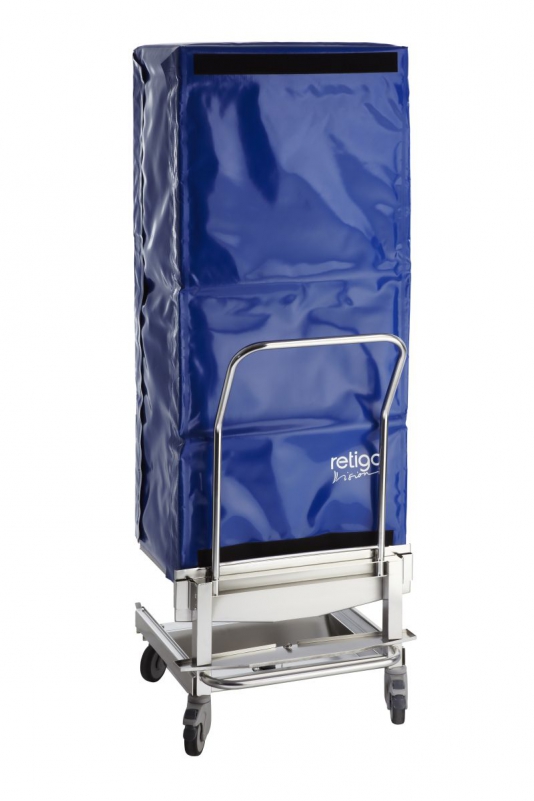

Thermo cover VO2011B TO 2011B



Drawings

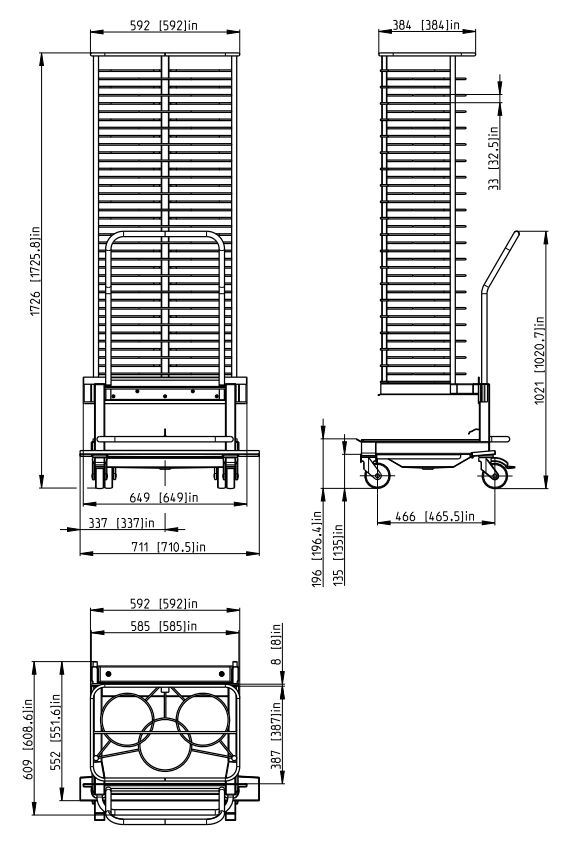

Banquet trolley VO2011B - 59 plates

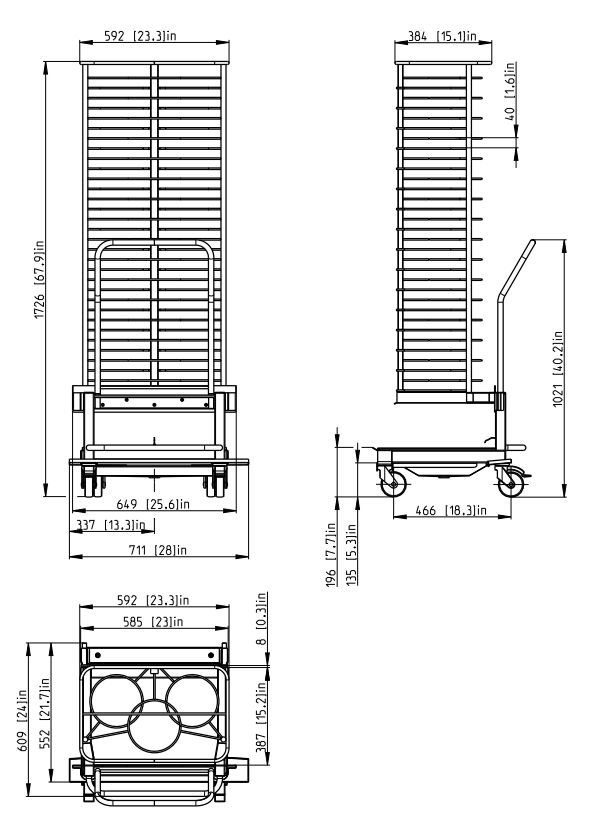

Banquet trolley VO2011B - 48 plates

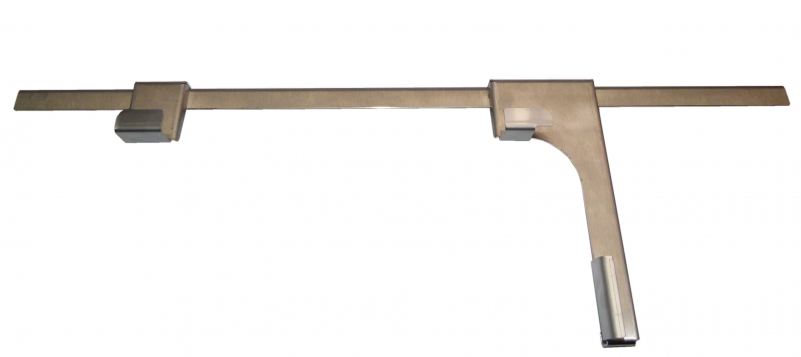

Optional accessories
